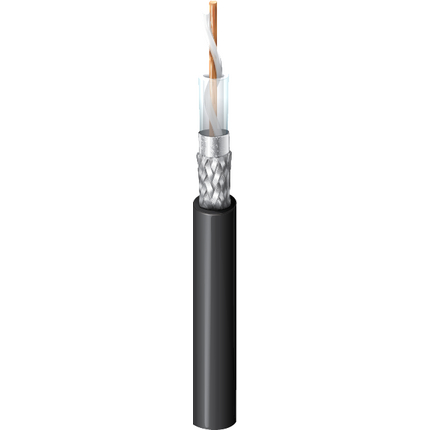

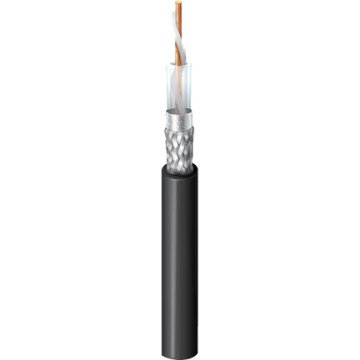

Belden Coaxial Cable, Brilliance®, RG8, 10 AWG, 50 ohm, 100 ft, 30.5 m

50 Ohm Belden 9913 010100

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Conductor Size Stranding Nom. Diameter Material
10 AWG Solid 0.108 in BC - Bare Copper

Attenuation Frequency Nom. Attenuation (100ft = 30,5m)
5 MHz 0.4 dB/100ft
10 MHz 0.5 dB/100ft
50 MHz 1.0 dB/100ft
100 MHz 1.4 dB/100ft
200 MHz 1.8 dB/100ft
400 MHz 2.6 dB/100ft
700 MHz 3.6 dB/100ft
900 MHz 4.1 dB/100ft
1000 MHz 4.4 dB/100ft
